10K 2.252K NTC Medical Temperature Sensor Micro Plug Skin Temperature Probe

Product Categories
Hefei Jingpu Sensor Technology Co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

10K 2.252K NTC Medical Temperature Sensor Micro Plug Skin Temperature Probe

Brand Name : JP SENSOR

Model Number : JP402

Certification : CE, ISO13485, ISO9001, RoHS

Place of Origin : Anhui, China

MOQ : 1000 Pieces

Price : To be negotiated

Payment Terms : L/C, T/T, Western Union

Supply Ability : 200 Million per Year

Delivery Time : 2 Weeks

Packaging Details : Carton Packing

Resistance : 2.252KΩ or 10KΩ

Tolerrance : （25~45）℃±0.1℃

Operating temperature range : 0℃~50℃

Application : Suitable for medical monitoring equipment

Chip : NTC Thermistor

Probe : SUSφ2*9.5

Cable : PVC 28AWG OD2.0 Shielded round sheath wire

Plug : Micro

Contact Now

10K 2.252K NTC Medical Temperature Sensor Micro Plug Skin Temperature Probe

Brief Introduction:

Skin temperature probe medical temperature sensor is widely used for human body surface temperature measurement. The sensor probe is epoxy and metal disk, MICRO plug, or customized connector according to the customer’s requirement. The rated resistance value 2.252KΩ or 10KΩ.

Features:

Human body surface temperature measurement

Reusable

(25~45)℃±0.1℃

Operating temperature range: 0℃~50℃

Application:

Suitable for medical monitoring equipment

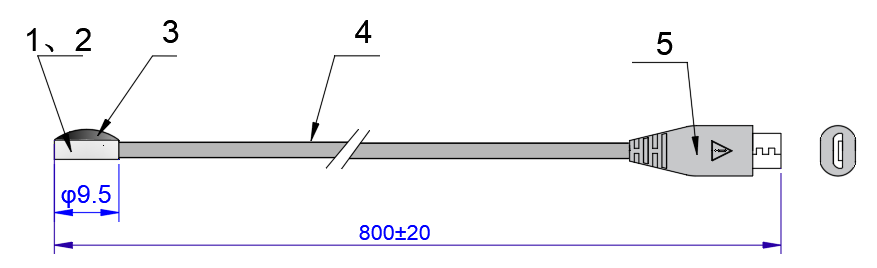

Structure and Dimensions:(Unit: mm)

10K 2.252K NTC Medical Temperature Sensor Micro Plug Skin Temperature Probe

NO. Name Material Specification QTY. Remarks
1 Chip NTC Thermistor 1
2 Probe SUSφ2*9.5 1 /
3 Encapsulation Epoxy / gray
4 Cable PVC 28AWG OD2.0 Shielded round sheath wire 1 gray
5 Plug MICRO 1 gray
